ELEGANT SOLUTION FOR INDOOR/OUTDOOR LUXURY LIVING

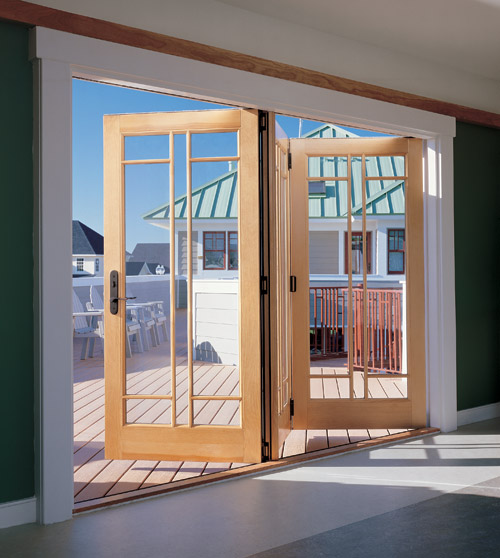

The Bi-fold door is a simple, elegant solution for indoor/outdoor luxury living – opening wide to invite fresh air in, blurring the boundaries and creating connections with verandas, gardens or adjoining interior spaces.

Two to eight panels can comprise bi-fold doors for openings as large as 21′ wide x 8′ high. Panels move easily on an extruded aluminum track to fold neatly to the side—the ultimate in economy of space.

An outswing service panel can allow for easy handling with an elite hardware system created specifically for exterior residential and light commercial folding door applications. The unit features a mortise latch or multi-point locking system, and can incorporate an ADA or floor channel sill option for seamless transitions.

KEY FEATURES

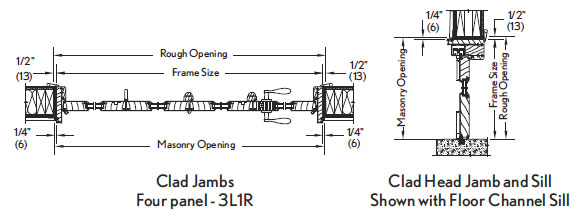

• Minimum size: 36″ x 32 15/16″ rough opening
• Maximum size: 252″ x 97 5/8″ rough opening
• Configurations available from 2 to 8 opening panels
• Minimum panel size: 14 5/8″
• Maximum panel size: 35 1/16″
• Available in wood or clad exterior with 70% Kynar 500®
• DP30 rated for air and water infiltration and structural

FUNCTIONALITY

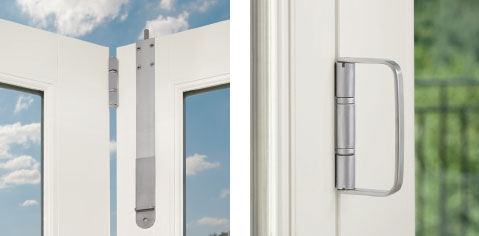

The sophisticated Sure-Lock IITM adjusting system secures the panels firmly in place. The Bi-fold Door features an elipse e3TM hardware system.
